Newbourne 60 Convector Inset

Technical data Newbourne 60 Convector Inset
Nominal output 7W
Range rating 6-9KW
Flue outlet diameter Ø125 mm top
Heating area 10-100 m2
Weight 110 kg
Distance to flammable materials
to furniture 90cm
Width of wood chamber 30cm
Max log length 29cm
Dimension of convection box in mm 529 x 406 x  340mm (HxWxD)
Dimension of front exposed part of stove 606 x 545 x 128mm (HxWxD)
Distance of centre of top flue outlet from rear of stove front 257mm
Colour options Black
Efficiency when burning wood 78%
Efficiency when burning solid fuel 79%
Can be installed on a 12mm hearth
CE mark, EN13229, Defra approved for smoke control zones

PEVEX 60 CONVECTOR 6-9kW Multifuel Stove

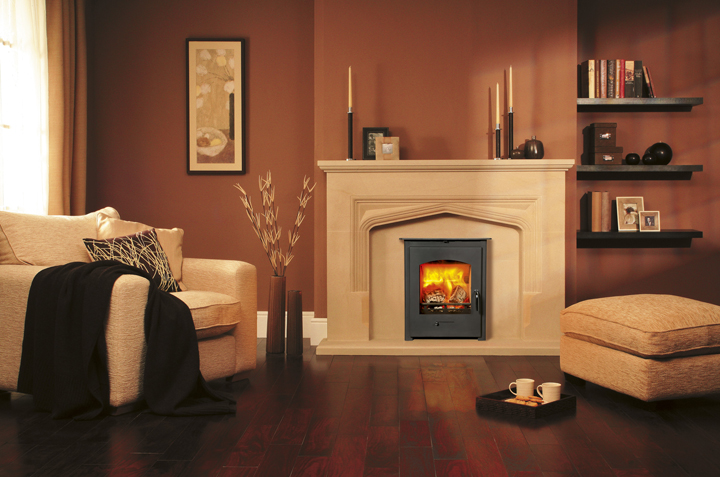

The new Pevex 60 Convector 6-9kW is a high output inset stove

designed to fit into a standard UK 16” x 22” fireplace opening and with a

unique cassette design for easy installation. This stove offers a huge

increase in efficiency over an open fire but will also add a lovely focal

point to the room.

A large fire chamber allows logs up to 13” in length to be loaded. The

wide door with its large glass window allows an uninterrupted view of

the fire burning brightly in the heart of the stove. Built in convection sides

and top plate, ensures maximum heat output from this large efficient


Features include:

  • 78% efficiency (net)
  • Heavyweight robust construction
  • Multifuel for burning wood and smokeless fuel
  • Riddling cast iron grate
  • Primary air control and secondary air wash sliders
  • Side and rear injected tertiary air for improved combustion Vermiculite lined fire chamber for improved efficiency
